High Capacity Automatic Hospital Washer Disinfector With Manual Door
Quick details
- Chamber capacity : 520L
- Maual door structure
- Steam heating or electric heating
- For Hospital CSSD
Application:
It is suitable for the following goods to be washed: surgical instruments (e.g. shears, pliers forceps and other metal instruments), vessel (dressing change, bending disk, tube, beaker, etc, anesthesia instruments (anesthesia tube, breathing bag, mask, various catheters, etc), surgical shoes, endoscopic instrument, dental handpiece and so on.
Main parameters:
| 520L cleaning amount(standard cleaning tray) | 15 baskets |
| 520L water resource consumption | 35L/step |
| Hot-water treatment method | 93℃ |
| Water heating method | Electric heating/steam heating |
| 520L steam consumption | 11KG/step(steam heating) |
Specification
| Type | QK-S-II | QK-S-II |
| Capacity | 520L | 520L |
| Heating source | Steam heating | Electric heating |
| Chamber size(LX W X H) | 800 x 696 x 1100mm | 800 x 696 x 1100mm |
| Outer size (LX W X H) | 1000 x 1270 x 1870mm | 1000 x 1270 x 1870mm |
| Net weight | 500KG | 450KG |
| Supply voltage | 380V | 380V |
| Frequency | 50HZ | 50HZ |
| Power | 16.5KW | 28.5KW |
Technology advantage:
The processes of cleaning, rinsing 1, rinsing 2, desinfection and drying run automatically.The time of the whole process that stream heating need ≤45minutes.
Channel-type double door with interlock function ensueres isolation effectively between cleaning area and contaminated area. Safety lock makes sure that it can automatically return when meeting obstacles. Doule transparent tempered glass doors with large window isolate sound and heat and is convenient for user to observer the cleaning state.
Siemens PLC control system and color touch screen man-machine interface that make operation interface simple and friendly and can set various parameters in order to meet the customer individual demands.
The device with network extended interface and USB interface can realize interconnection and store cleaning record from U disk.
The core componects including cycle pump, fan,control system,pneumatic valve,direct reducer, pressure diffrence switch, microswitch,metering pump adopt international famous brand to ensure operation stable.

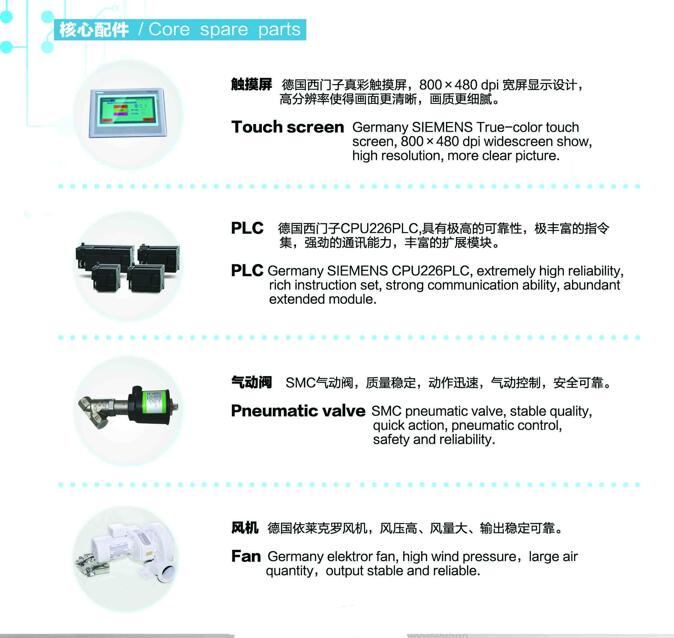

Core Spare Parts
Product Tags:
|
|
High Capacity 520L Hospital Medical Washer Disinfector With Manual Door Images
|
